Introduction
Characteristics
Introduction

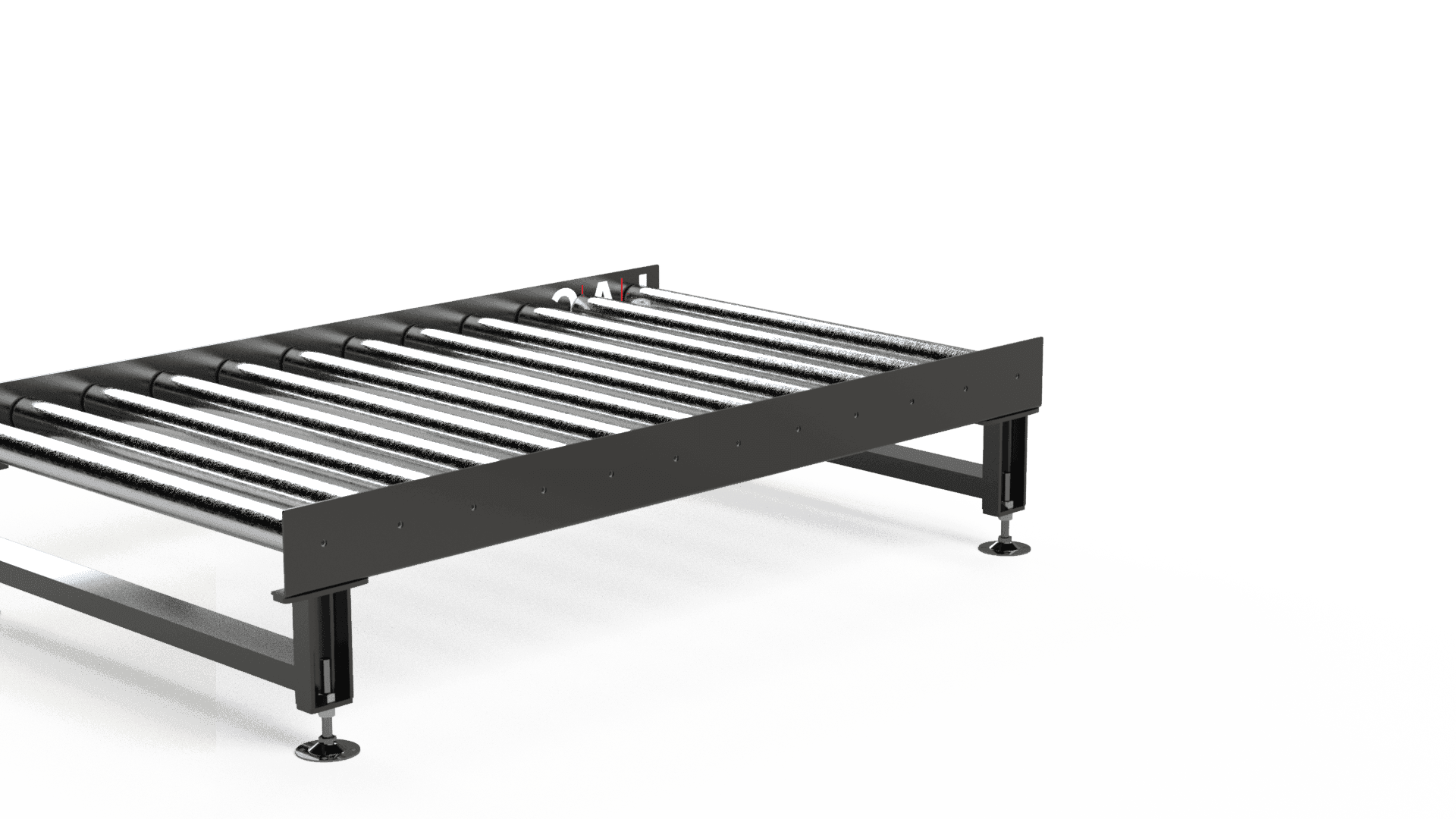

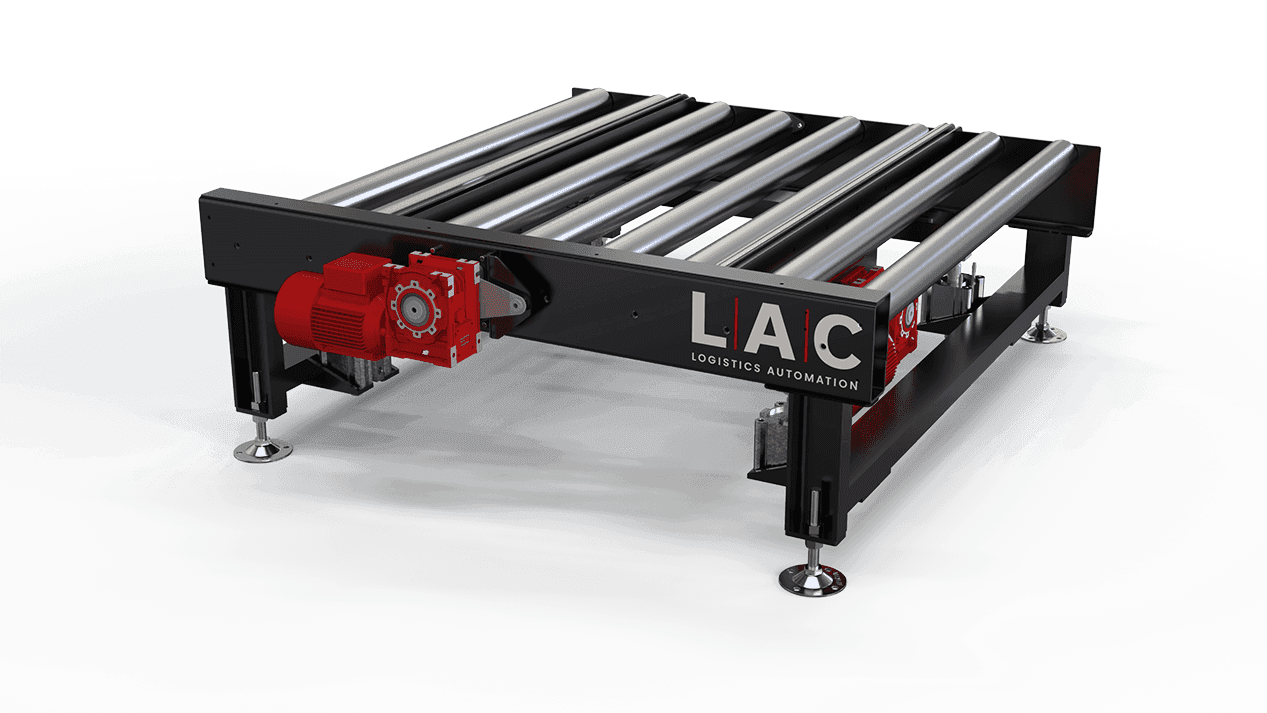

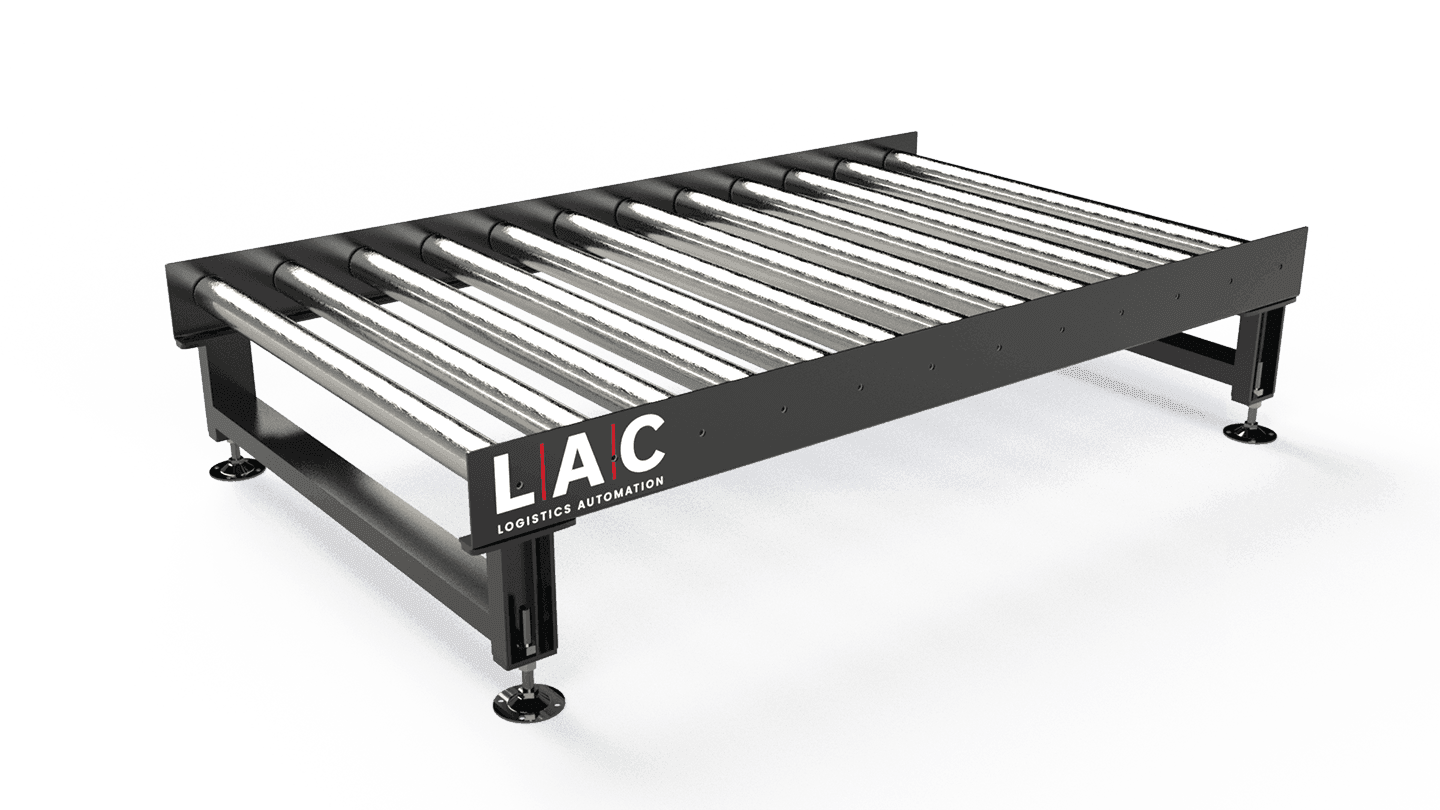

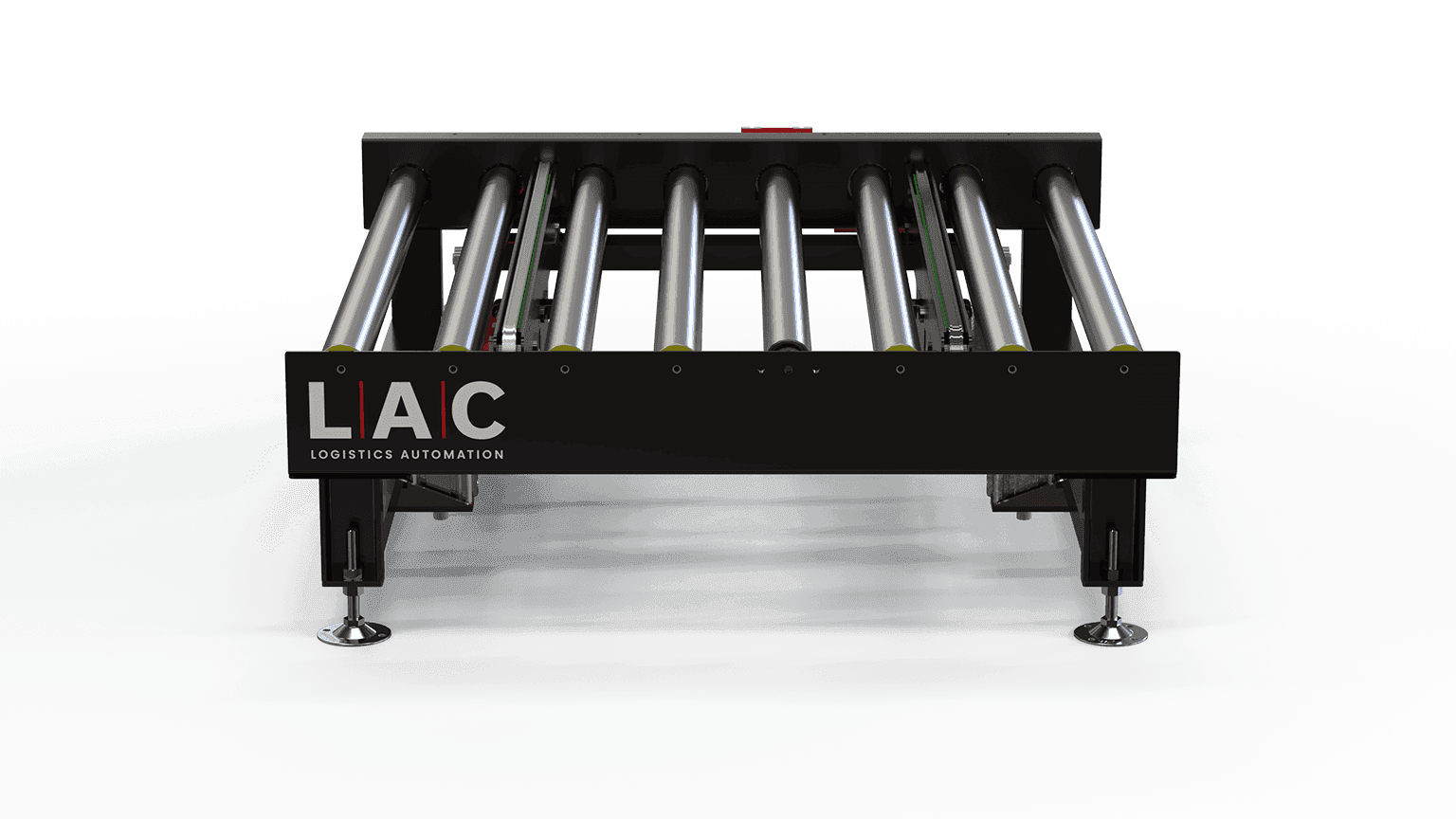

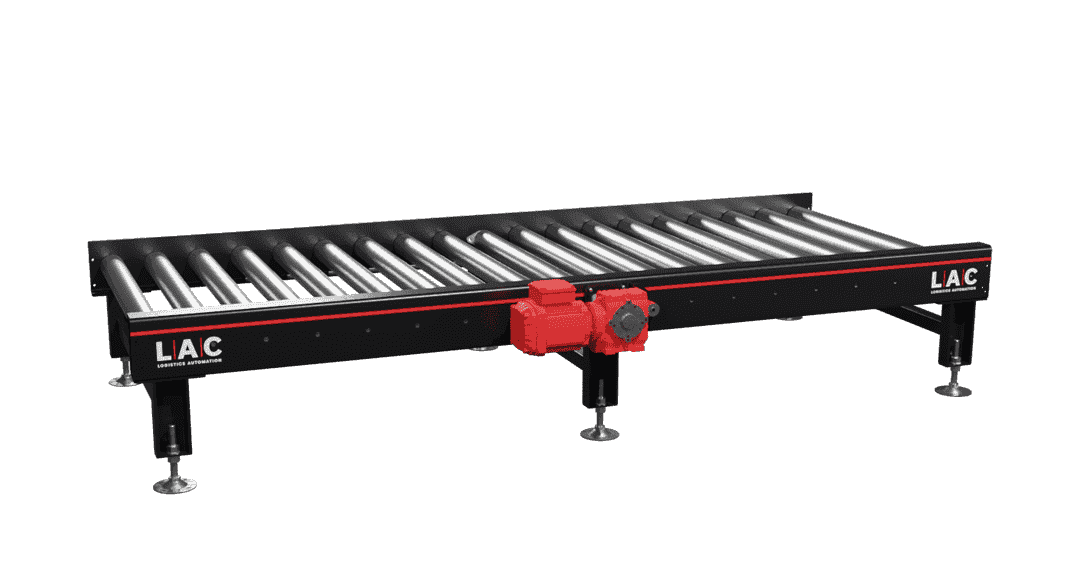

The roller pallet conveyor is a robust and versatile solution designed for efficient pallet handling in various industrial applications. Crafted with precision and durability in mind, this conveyor system ensures the seamless transportation of palletised goods while minimising maintenance requirements and optimising material flow.
Characteristics
- 103, 150, and 182 mm pitches are available as standard
- Side-mounted, underslung and over-slung are available as standard
- Max load with 0.55kw motor – 3,000kg
- Max load with 0.75kw motor – 4,500kg
- Maximum load per roller:
Up to 1280mm: 500kg
1280mm-1580mm: 360kg - Minimum top roller height: 110mm
- Ø80 BZP rollers (available in stainless and or with flanges)
- Driven by a 5/8″ simplex looped chain in a bracelet format along the length of the conveyor. These chains are fully guarded by the chain cover and end covers.
- The chain cover and end covers are formed in 3mm mild steel.

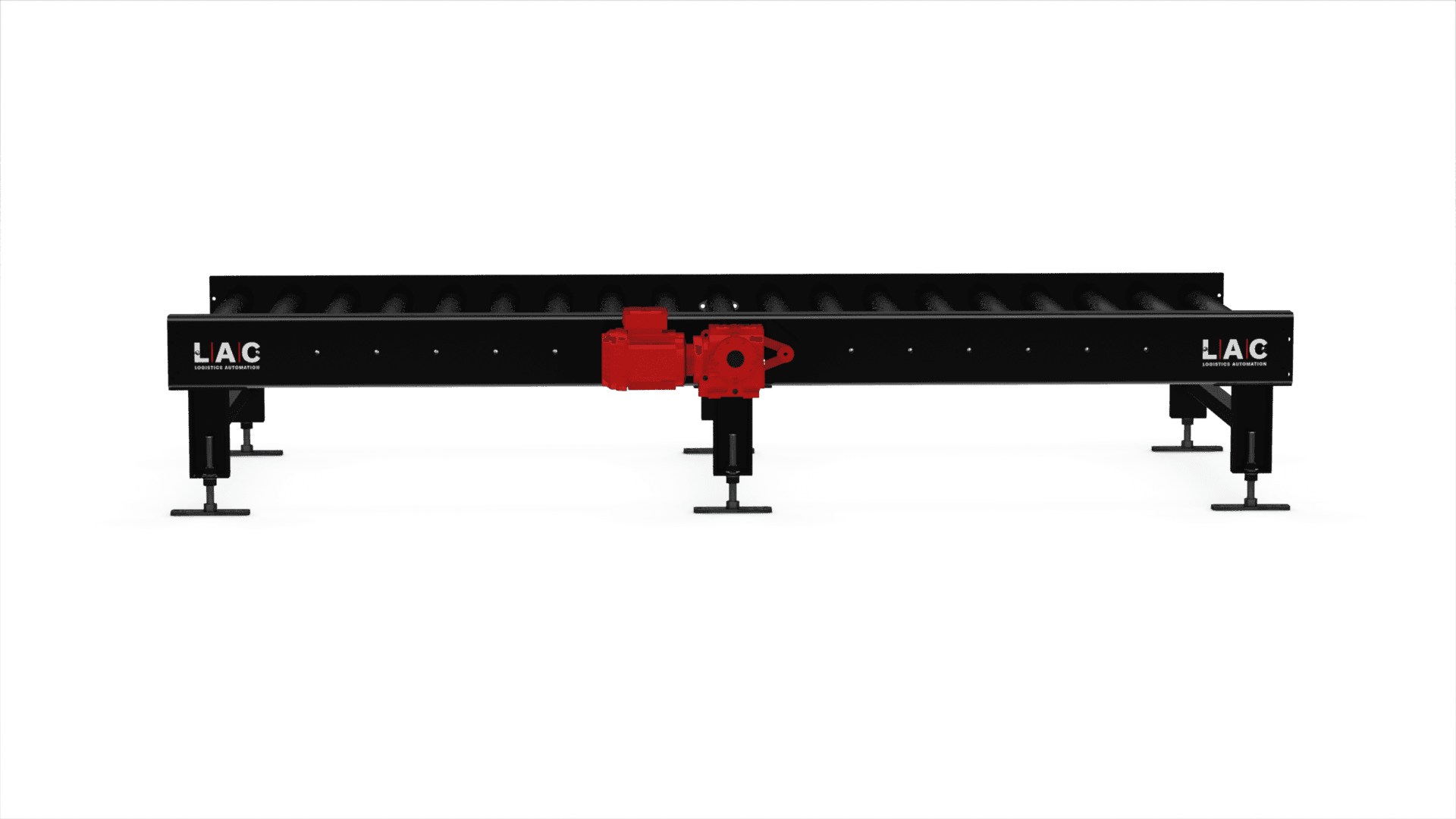

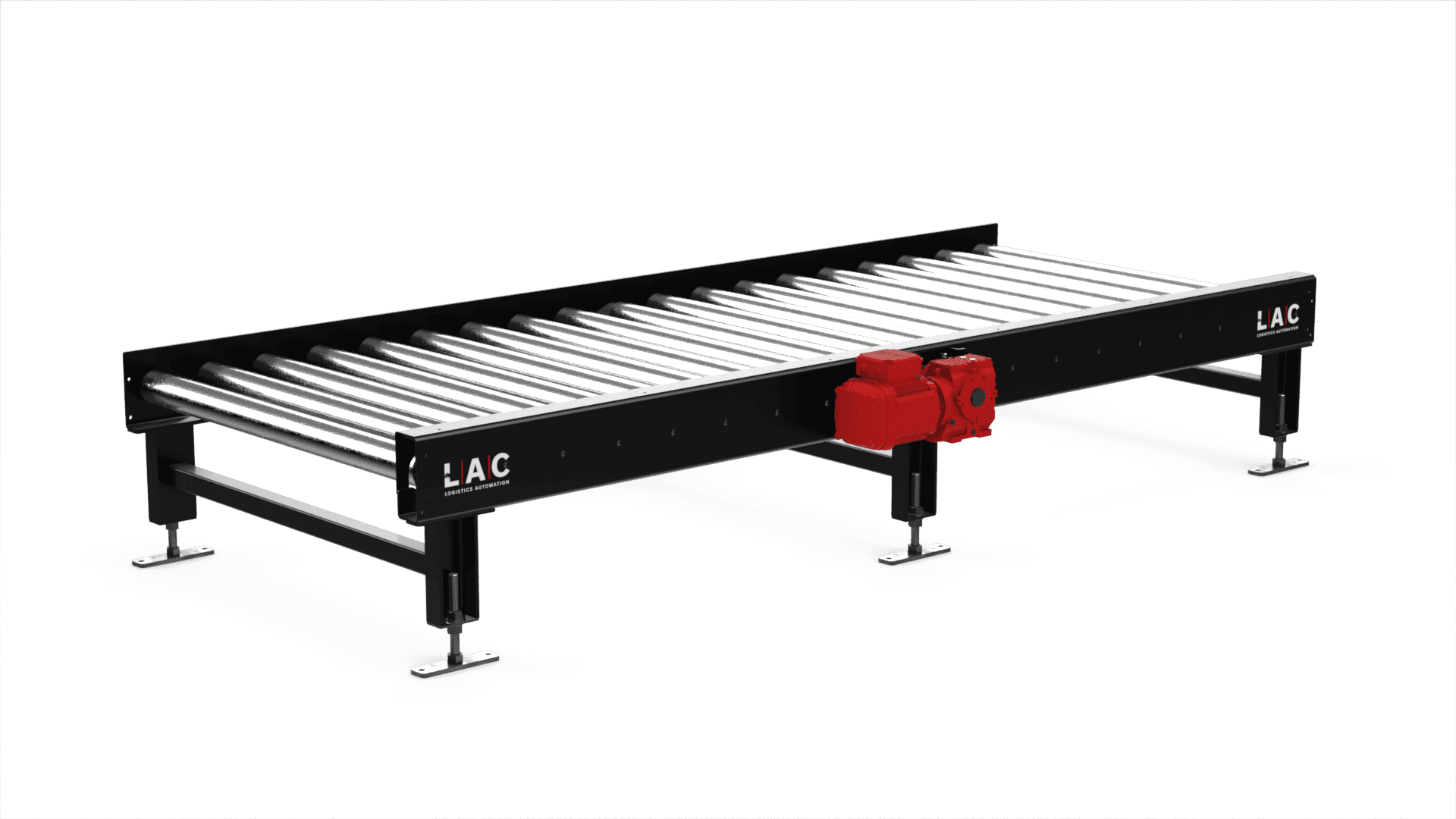

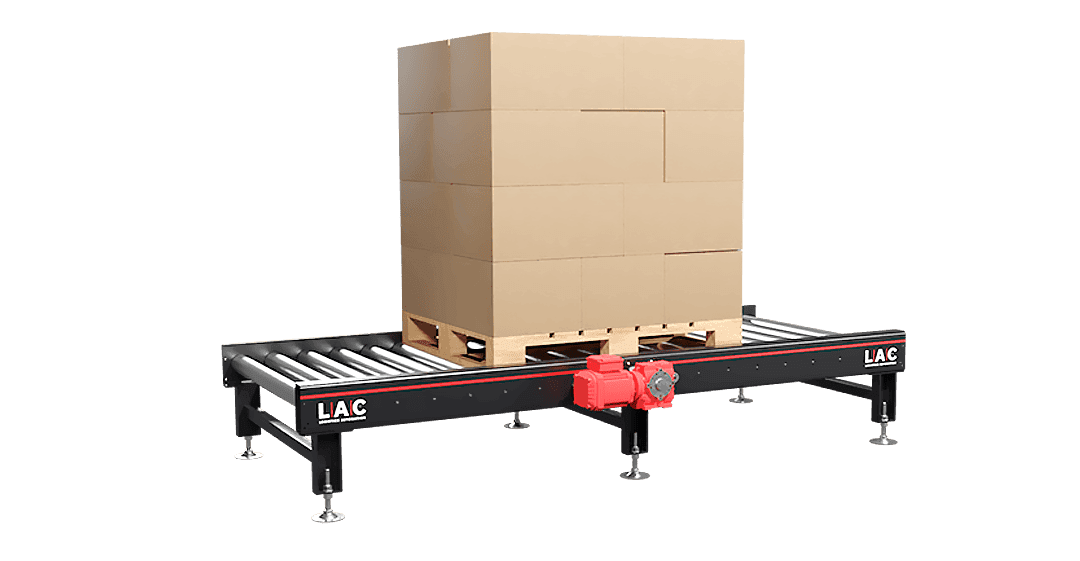

Powered Pallet Roller Conveyor
Introduction
Characteristics
Introduction

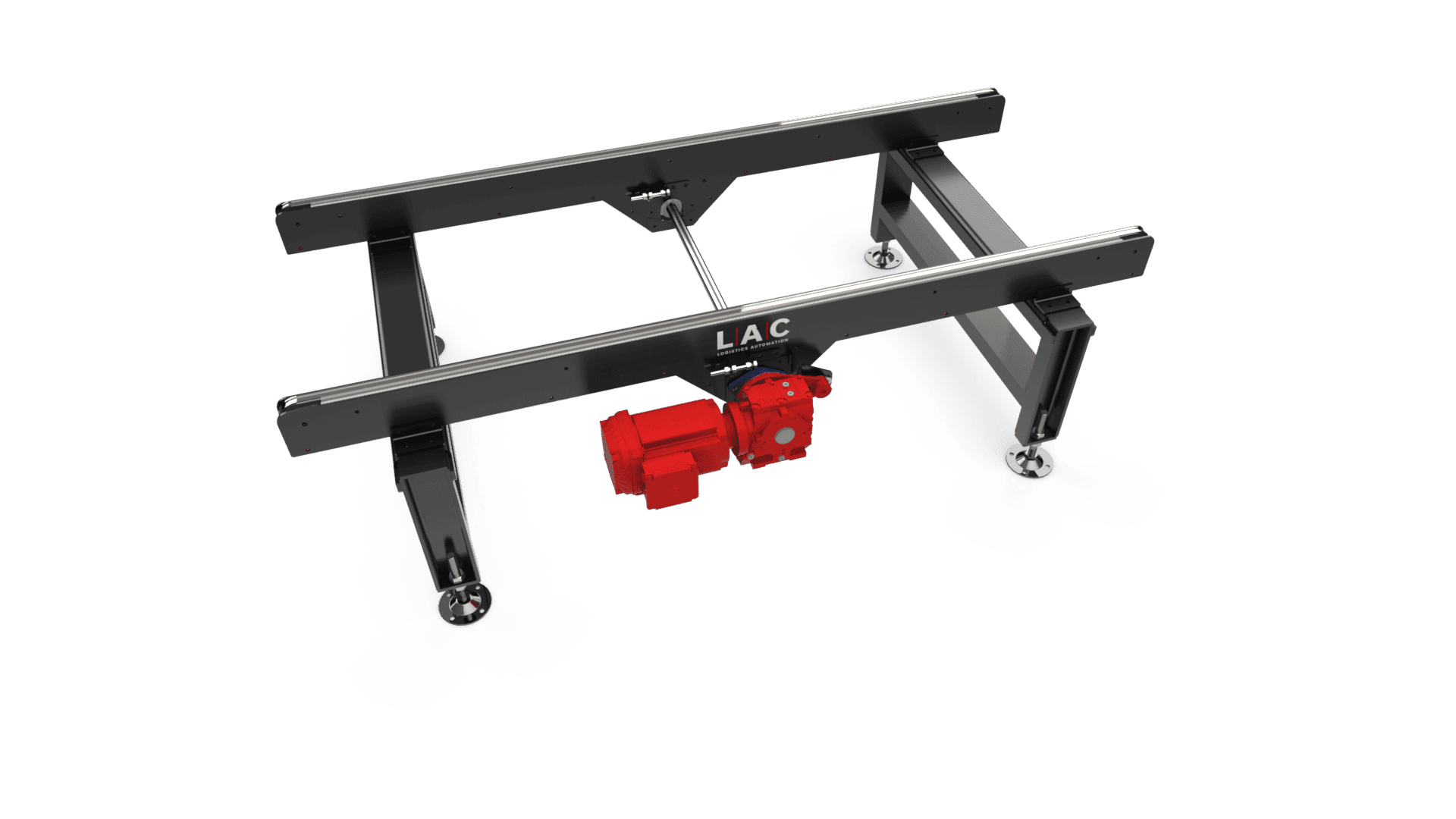

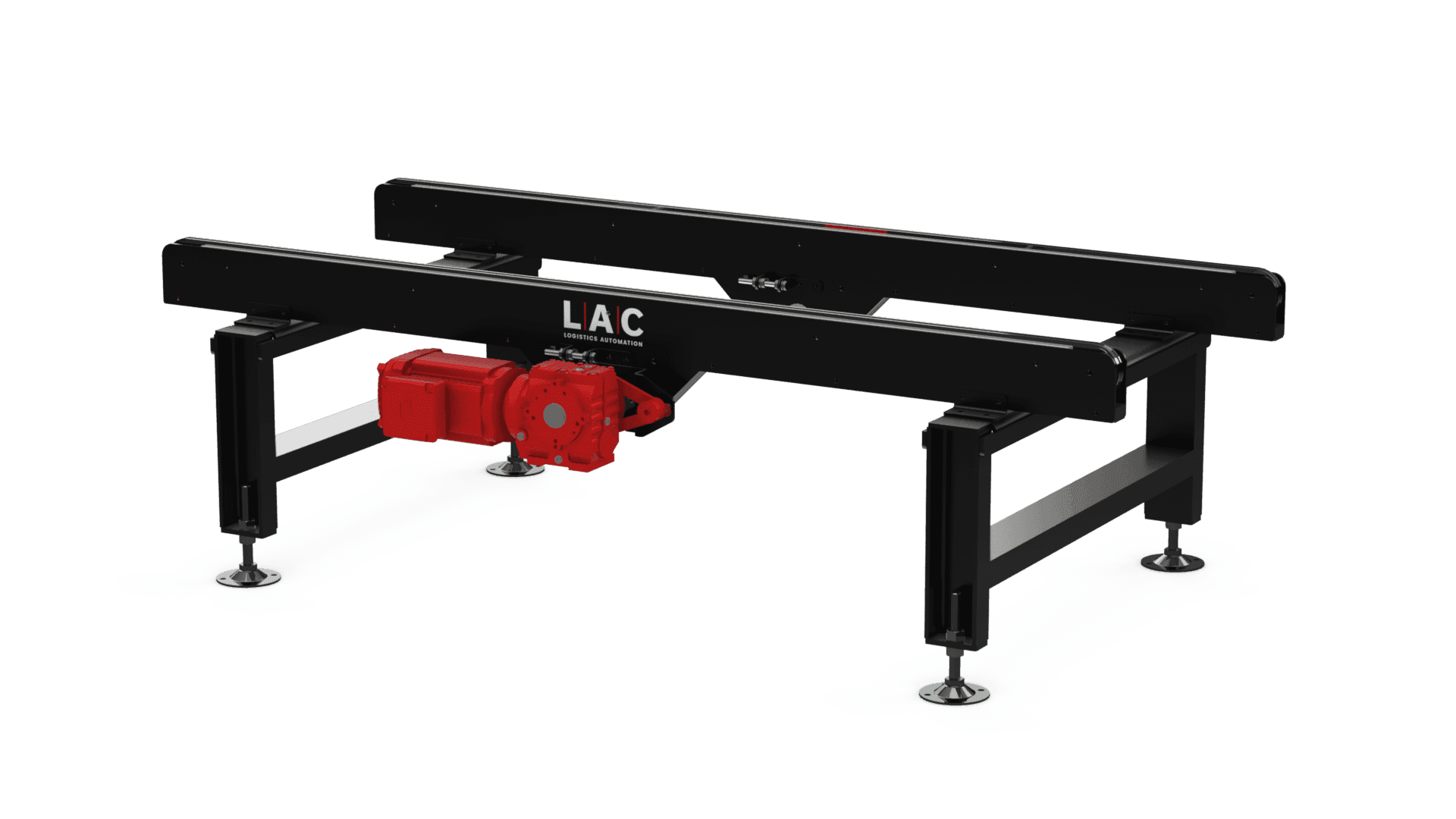

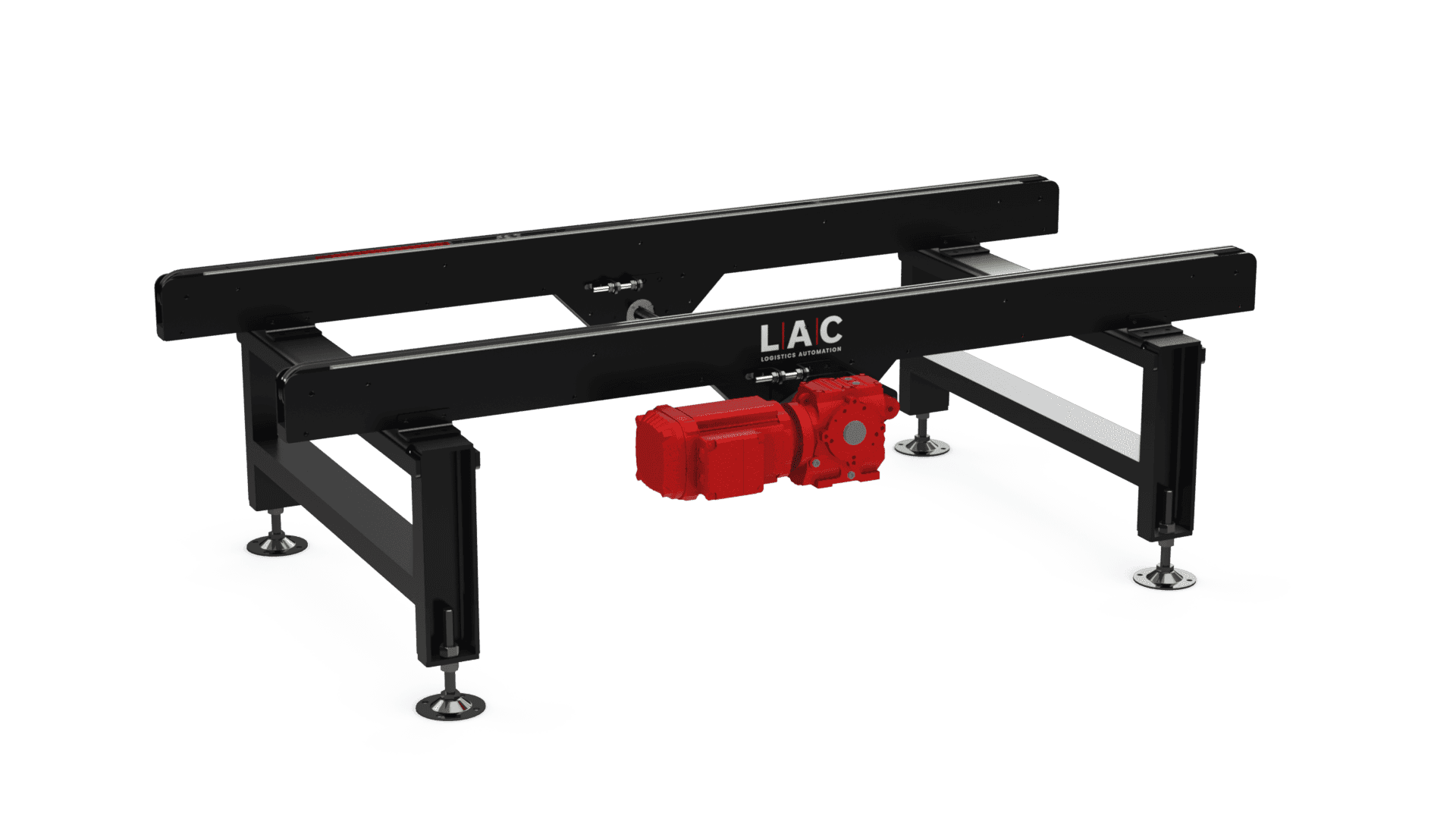

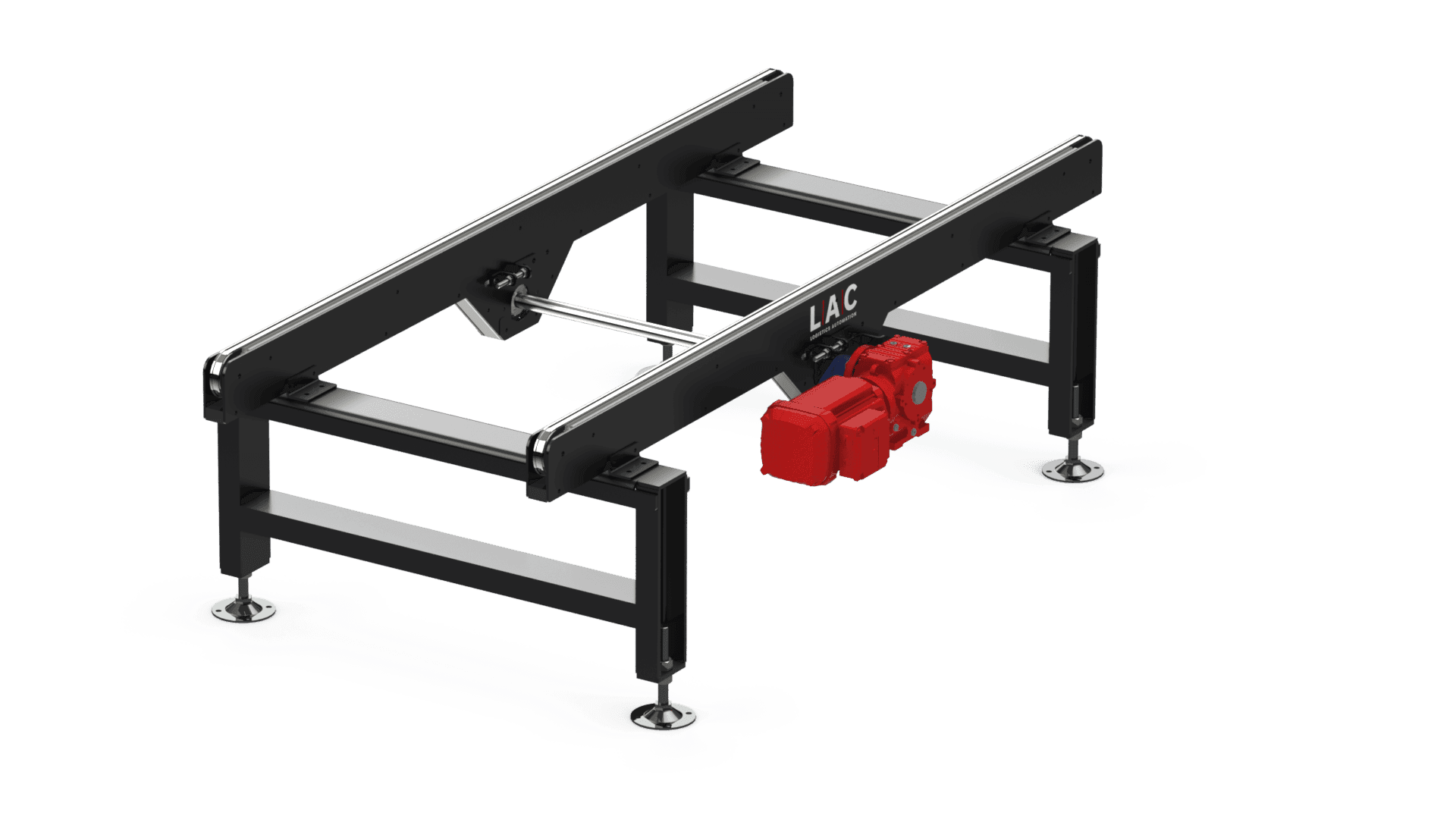

The chain pallet conveyor is a versatile and robust material handling solution designed to efficiently transport goods, particularly in industrial and warehouse settings. Ideal for conveying pallets that aren’t Bi-directional.
Characteristics
- 2 and 3-strand chain conveyors are available as standard
- Maximum load on a two-strand chain conveyor: 2500kg
- Maximum load on a three-strand chain conveyor: 3750kg
- Speeds: Adjustable from 8.8 M/Min to 14 M/min
- Equipped with UHMWPE chain guide strips for smooth chain operation.
Chain Conveyor
Introduction
Characteristics
Introduction

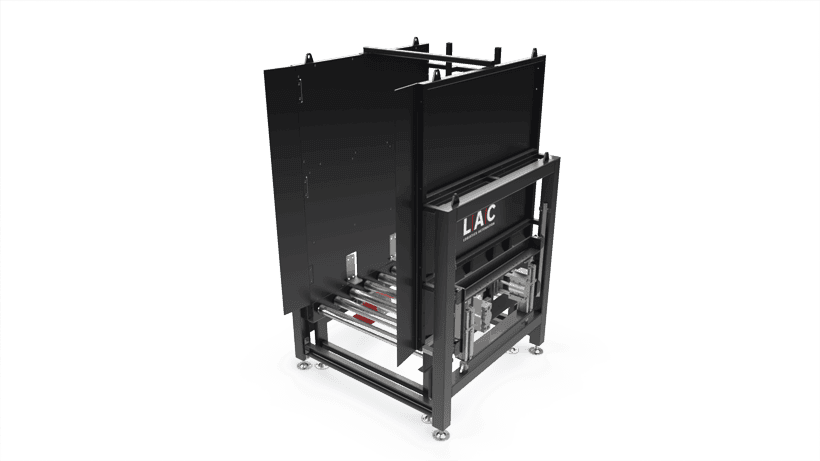

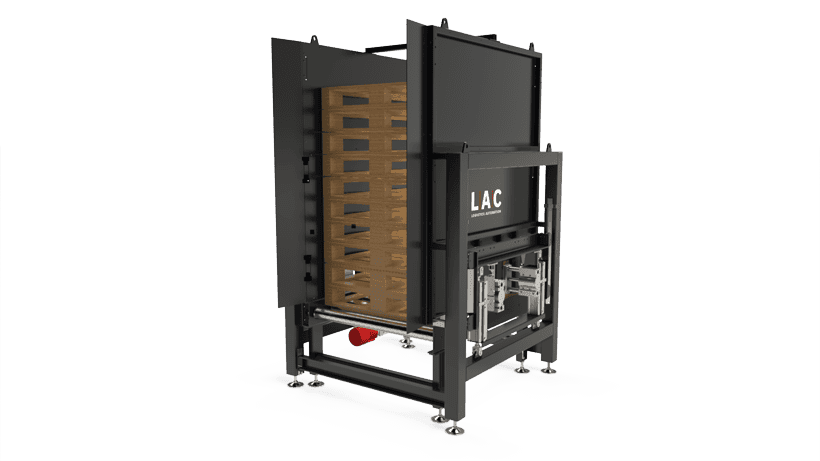

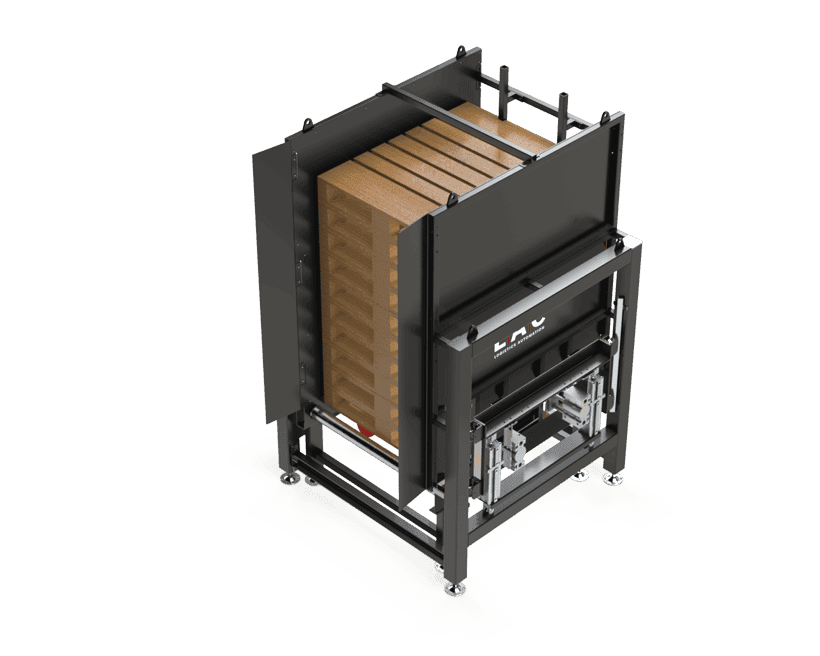

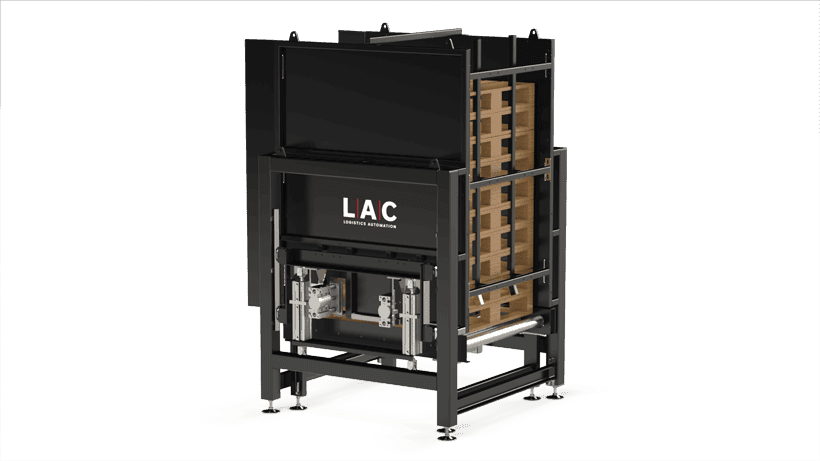

The pallet stacker/de-stacker is a specialised material handling solution designed to feed single pallets from a stack into a conveyor system or vice versa, making it an essential component for industries that require automated pallet handling.
Characteristics
- Max 14 pallets capacity (more pallets can be added to capacity)
Pallet Stacker/De-stacker
Introduction
Characteristics
Introduction

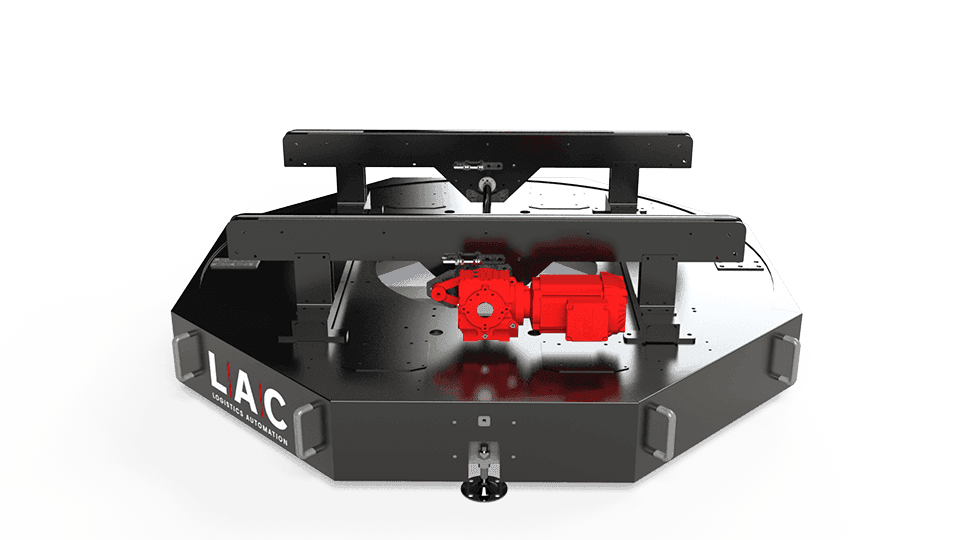

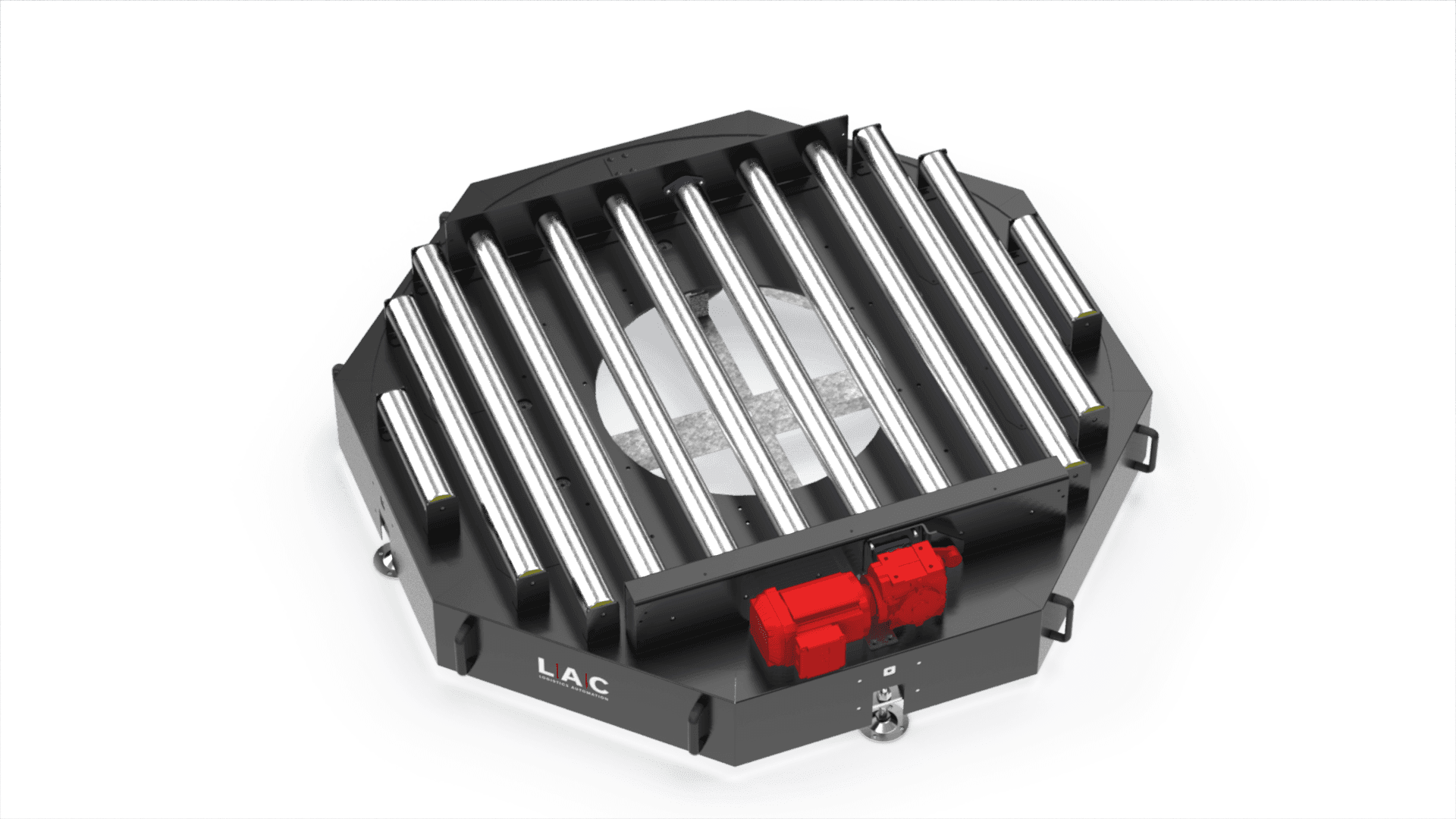

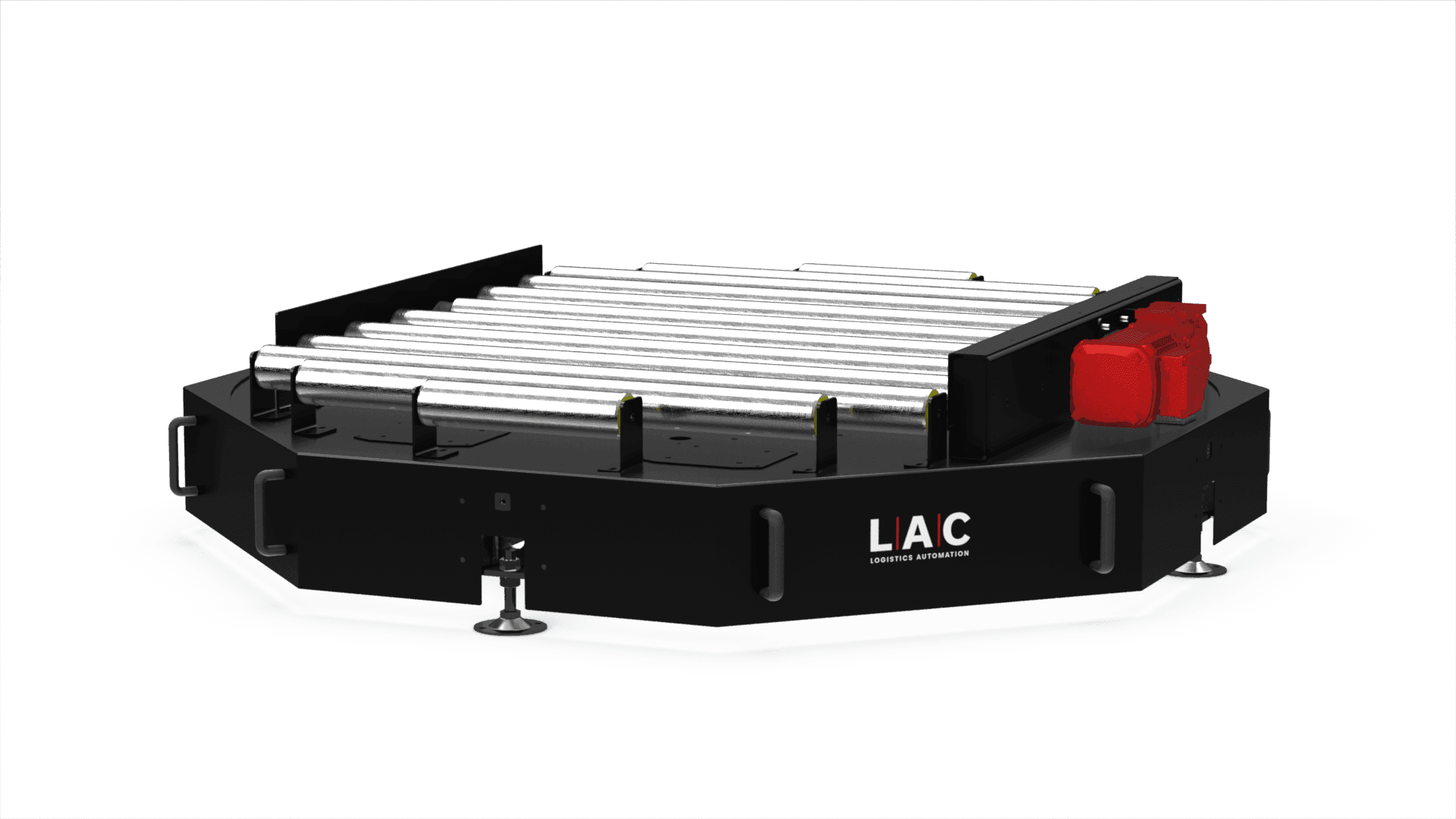

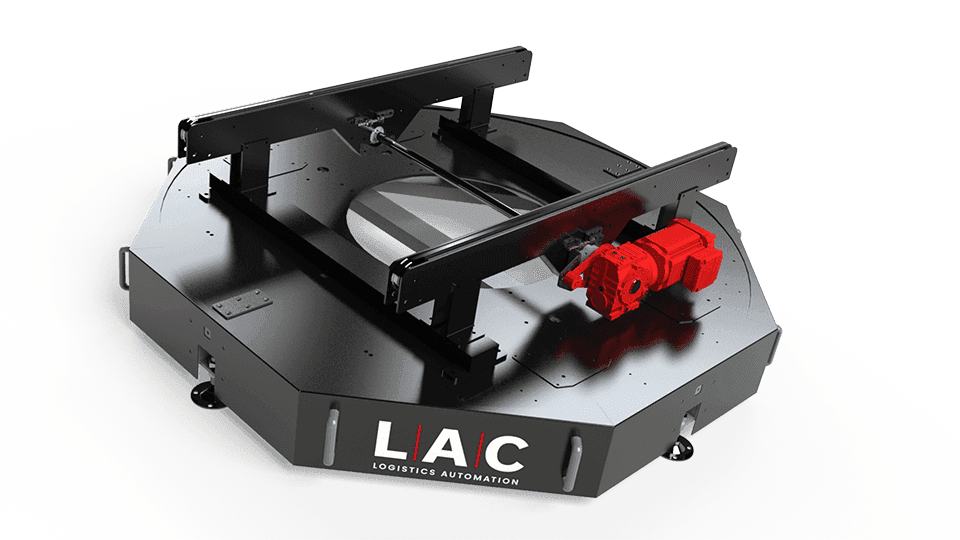

The pallet turntable is a critical component within pallet systems, designed to efficiently alter the direction of pallet travel by providing rotation of up to 360 degrees as the standard configuration.
Characteristics
• Operates at a standard rotation speed of 4 R.P.M (revolutions per minute),
balancing efficiency and precision.
• Minimum top of roller height: 500mm, ensuring ample clearance for pallet
rotation.
• Maximum load capacity with a 0.55kw motor: 3000kg, enabling the handling of
substantial pallet loads.
• Maximum load capacity with a 0.75kw motor: 4500kg, accommodating even
heavier palletised goods.
Pallet Turntable
