Improved Reliability & Shipping Accuracy
With ever changing customer behaviours, new digital communication challenges and the rapid increase in eCommerce business means the UK’s leading consumer delivery specialist and long-term customer to L-A-C, is continually looking to improve its efficiency and innovation.
The distribution hub based up in the Northwest required an upgrade to current operations. With any upgrade or new system implementation, L-A-C are always mindful to ensure that its solutions can be easily and efficiently scaled up and down upon demand, whilst being equipped with the necessary infrastructure to cope with growing volumes during longer periods of intense activity.
Project “Flyer Van Automation” required an automated transport and sortation solution to accommodate 120 van loads per day, processing the traffic via a scanning tower and automated sortation, directly onto 38 existing outfeed boom conveyors which would provide a consistent flow of around 5,000 parcels per hour.
L-A-C’s new range of belt conveyors
The current operation required a lot of human intervention with vans being offloaded from outside the building into cages, which were then manually hauled into the hub for sortation and then transferred to the appropriate 38 outfeed doors. The introduction of an automated system would reduce the manual labour currently associated with the process therefore reducing/eliminating the number of “mis sorts” due to human error. The new system would also offer increased throughputs while providing full traceability of parcels, polybags and irregular shaped traffic.

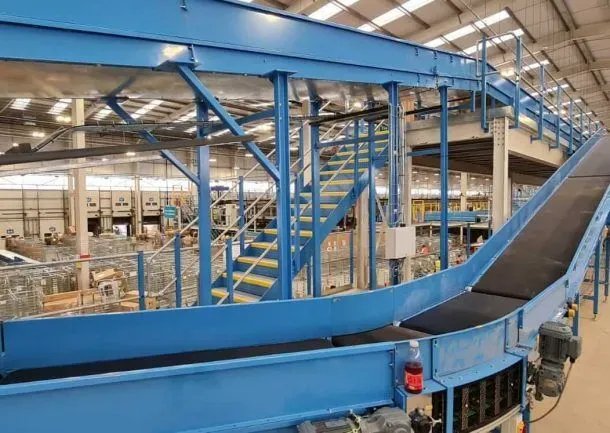

The solution utilised circa 350 metres of L-A-C manufactured, Post and Parcel conveyor, designed specifically to meet the exacting standards of the hugely demanding Post and Parcel handling industry. L-A-C’s new range of belt conveyors and multi-functioning switch sorter units provide the robust, efficient, and precise product movement this industry sector insists upon. Ideal for the variety of shapes, sizes and loads required, offering up to 80Kg/metre, this high performance, reliable range of equipment is modular in design, providing easy installation and integration across the range of products.
Infeed conveyor modules (located outside the hub) consisted of a 14-meter-long, one sided, belt conveyors, hot dipped galvanized finish providing weather protection. Operators load products onto the high-speed two-tier conveyor from a dedicated loading point. The belts on infeed utilised gauge strips at 600mm pitch to provide initial gapping of product with additional gapping created on belt conveyors inside the hub prior to the induct conveyors.

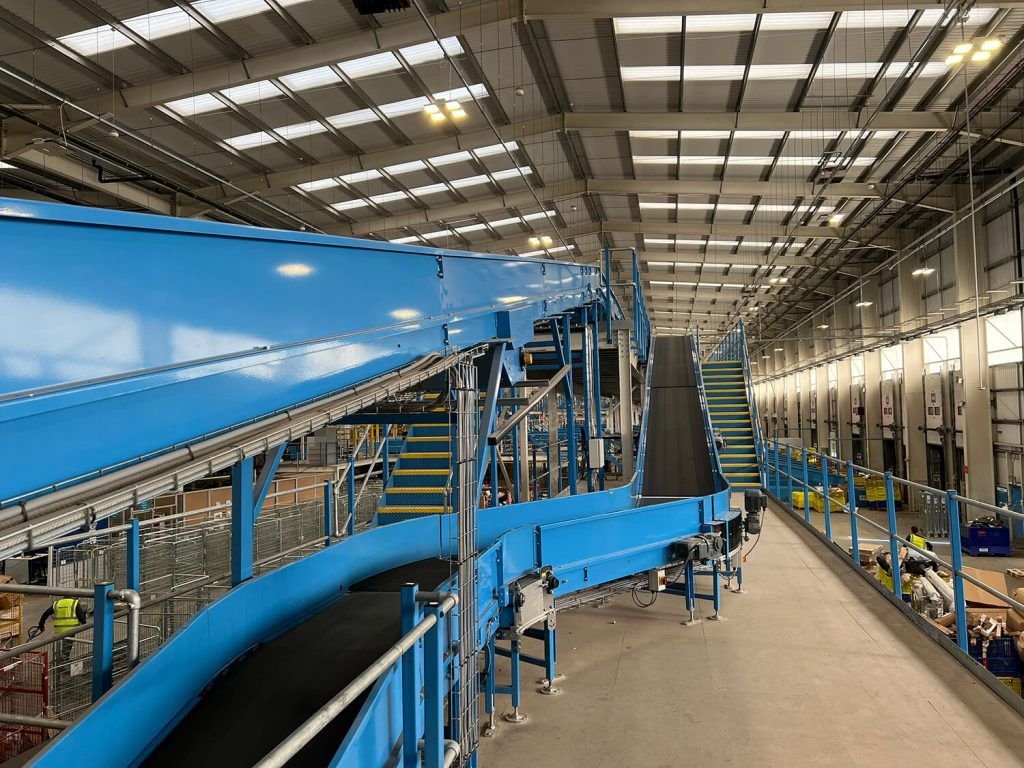

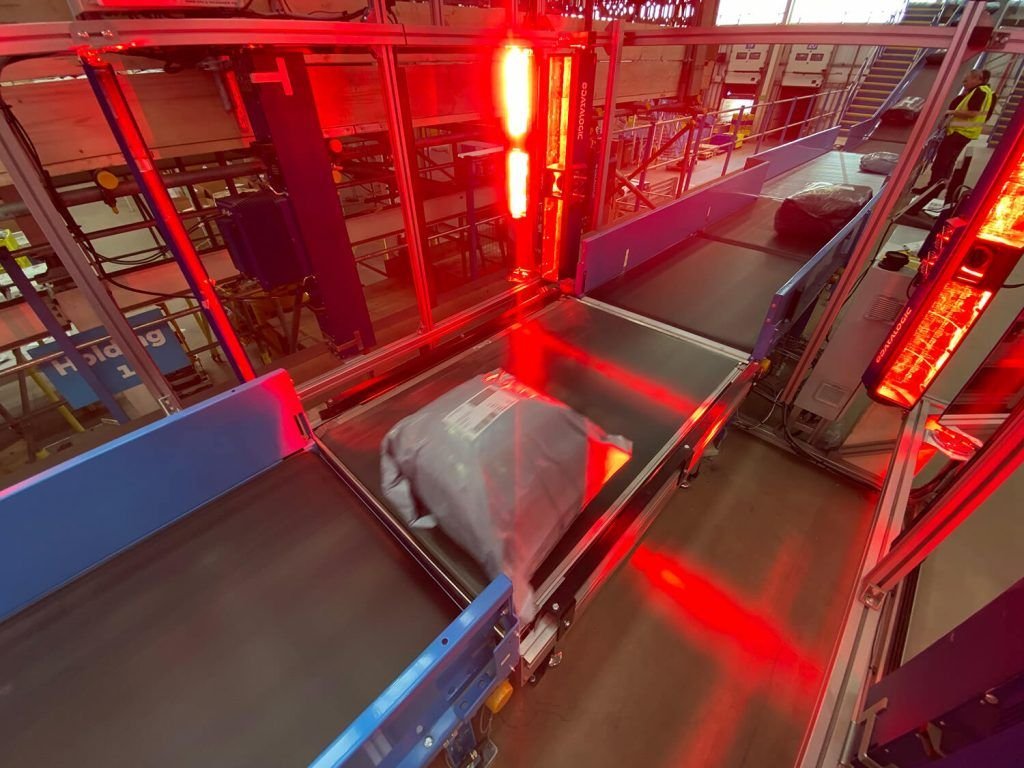

Once the parcel is on the in-feeding conveyor it automatically travels into the hub and inclines up to a 5-sided camera scanning tower (with volumizing functionality) via suitably located gapping belts. If the parcel is oversized, then the system will reject the parcel (either using the sorter, if the parcels can be processed on the machine or by stopping the infeed and waiting for an operator to remove it if the parcel is over-sized). The control system identified the barcode (either 1D or 2D) and called an API to ensure the parcel is transferred to the correct destination or will revert to a local lookup table to make the routing decision.
Once the scanning system has obtained the identity and volume of the parcel, the system indexed the parcel onto the automatic sorter with the parcel then, diverted to one of the multiple destinations dependent on barcode etc. The system offered provision for rejecting parcels and the sorter continuously monitored the fill level of the destinations and reject area to ensure a continuous flow is maintained.
System Overview
Objectives
- To remove the manual labour currently associated with the flyer van traffic sortation process
- To provide unloading station for up to 6 vans
- To provide conveyor lines to feed Beumer sorter inducts at a rate of 5000 parcels per hour
- Improve sorter throughput
- Ensure product separation
- Reduction in product handling cost per item
- to be compatible with current customer host/business systems and to be able to interface with the customer APL
- To reduce manual handling of product.
Key services & Technologies
- Galvanised Conveyors for use outside the main building
- 900mm wide belt conveyors, inclined and horizontal
- 5 side camera scanning
- EXPD product volumetrics
- mezzanine floor installed above existing inducts covering an area of 1,115.87m2
- Electrical integration with Beumer system
Results
- Additional 5000 parcels per hour delivered to Beumer Inducts
- Data capture for final destination sortation
- Large Mezzanine floor installed in phases over the existing live boom unloading positions
